Delta Demon
	Quantity in Cart: None Code: Eminence-Delta-Demon-Guitar-Speaker MSRP: $72 Price: $66.99 The Delta Demon Currently Ships Immediately. Order Yours Now!
	Quantity:

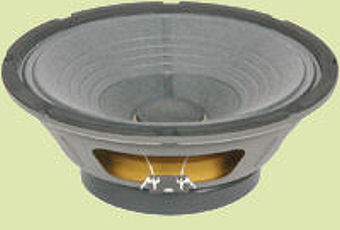

Eminence Delta Demon Guitar Speaker Designed specifically with a closed back cabinet in mind, the Eminence Delta Demon  works well in a single, double or 4 X 10 configuration. With a dark creamy smooth tone the Delta Demon retains a well balanced tone over the entire guitar spectrum. DELTA DEMON™   SPECIFICATION   Nominal Basket Diameter 10 , 254mm Nominal Impedance* 8 ohms Power Rating   Watts 100W Music Program   Resonance 76Hz Usable Frequency Range 80Hz-3kHz Sensitivity*** 96.9 Magnet Weight 30 oz. Gap Height 0.312 , 7.92mm Voice Coil Diameter 2 , 50.8mm     THIELE & SMALL PARAMETERS   Resonant Frequency (fs) 76Hz DC Resistance (Re) 6.9 Coil Inductance (Le) 0.66mH Mechanical Q (Qms) 15.06 Electromagnetic Q (Qes) 0.53 Total Q (Qts) 0.51 Compliance Equivalent Volume (Vas) 41.1 liters / 1.5 cu. ft. Peak Diaphragm Displacement Volume (Vd) 88cc Mechanical Compliance of Suspension (Cms) 0.22mm/N BL Product (BL) 11.3 T-M Diaphram Mass inc. Airload (Mms) 21 grams Efficiency Bandwidth Product (EBP) 143 Maximum Linear Excursion (Xmax) 2.4mm Surface Area of Cone (Sd) 366.1 cm2 Maximum Mechanical Limit (Xlim)       MOUNTING INFORMATION   Recommended Enclosure   Sealed Acceptable Vented   Overall Diameter 10.09 , 256.2mm Baffle Hole Diameter 9.05 , 229.7mm Front Sealing Gasket fitted as standard Rear Sealing Gasket fitted as standard Mounting Holes Diameter 0.25 , 6.4mm Mounting Holes B.C. D. 9.66 , 245.4mm Depth 3.8 , 97mm Net Weight 6.8 lbs., 3.1 kg Shipping Weight 8.5 lbs., 3.9 kg     MATERIALS OF CONSTRUCTION   Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Ferrite magnet Core Details Vented core Basket Materials Pressed steel basket Cone Composition Paper Cone Cone Edge Composition Paper cone edge Dustcap Composition Solid composition paper dust cap
